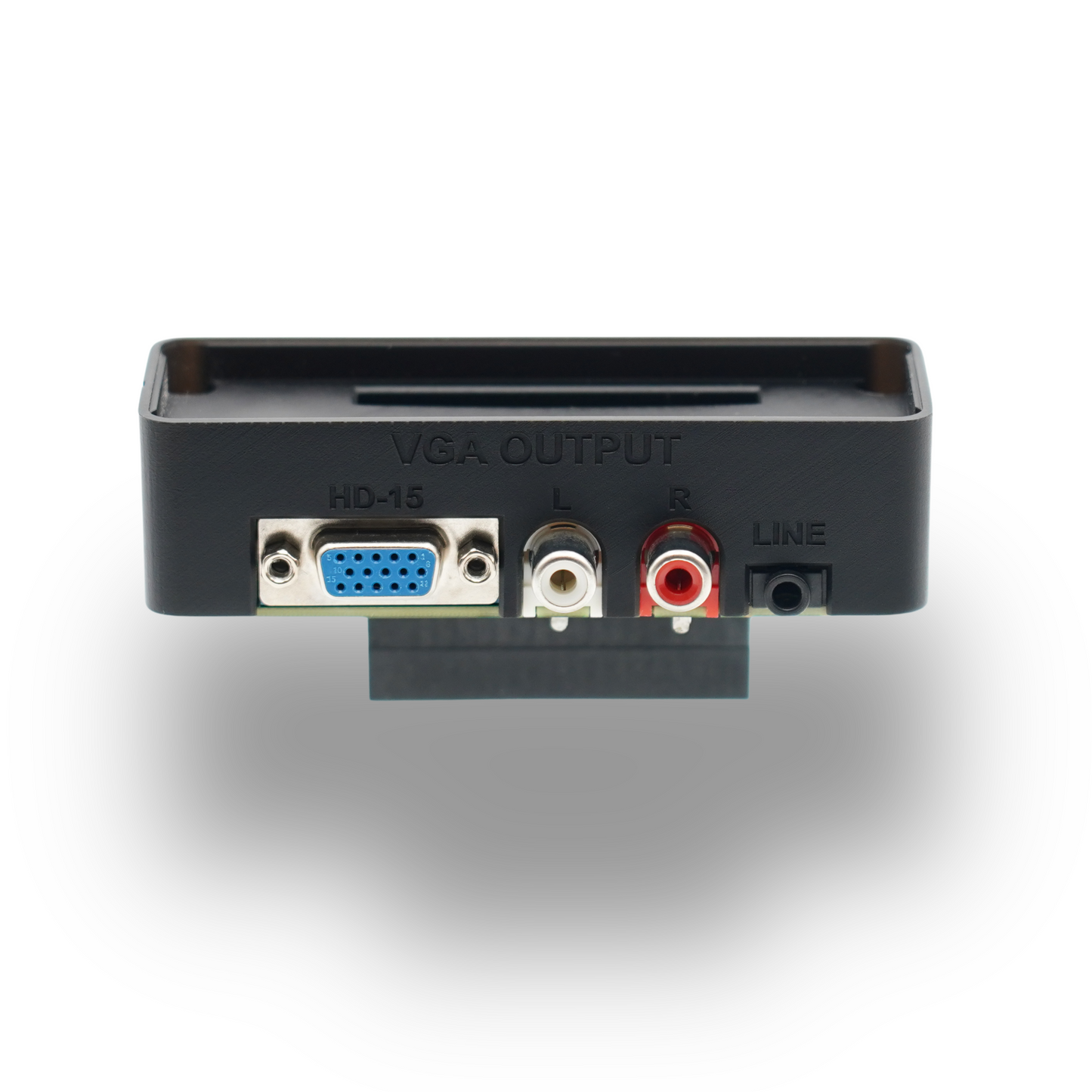

Scalable Video Switch VGA Output Module

This is the VGA Output module for the SVS. This module can output a variety of signal formats through it's HD-15 port.

Features:

• Can output RGBHV, RGBS, RGsB (otherwise known as Sync On Green) and YPbPr (otherwise known as Component Video), S-Video (on Green and Red) and Composite Video (on Green)
• Can convert RGBS to RGBHV
• Serial communication on pins 12 and 15 of the HD-15 port. Allows serial communication with the Retrotink4k for automatic profile loading.
• Can output resolutions up to 1080p60
• Can output Toslink digital audio with the optional Toslink Output Module.


Included Parts:

• 1x SVS VGA Output Module PCB
• 1x SVS VGA Output Module shell

• 4x M3 25mm hexagonal standoffs
