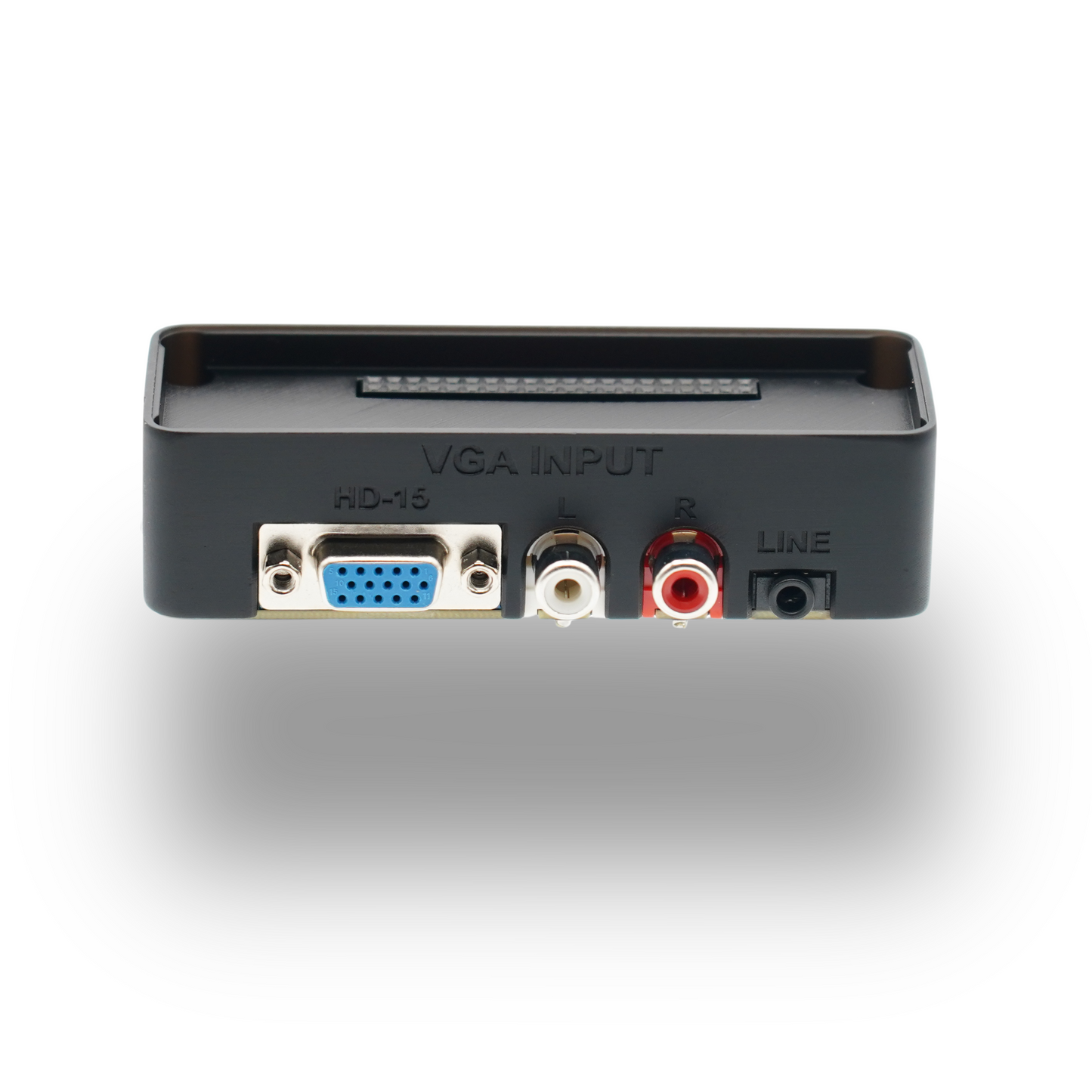

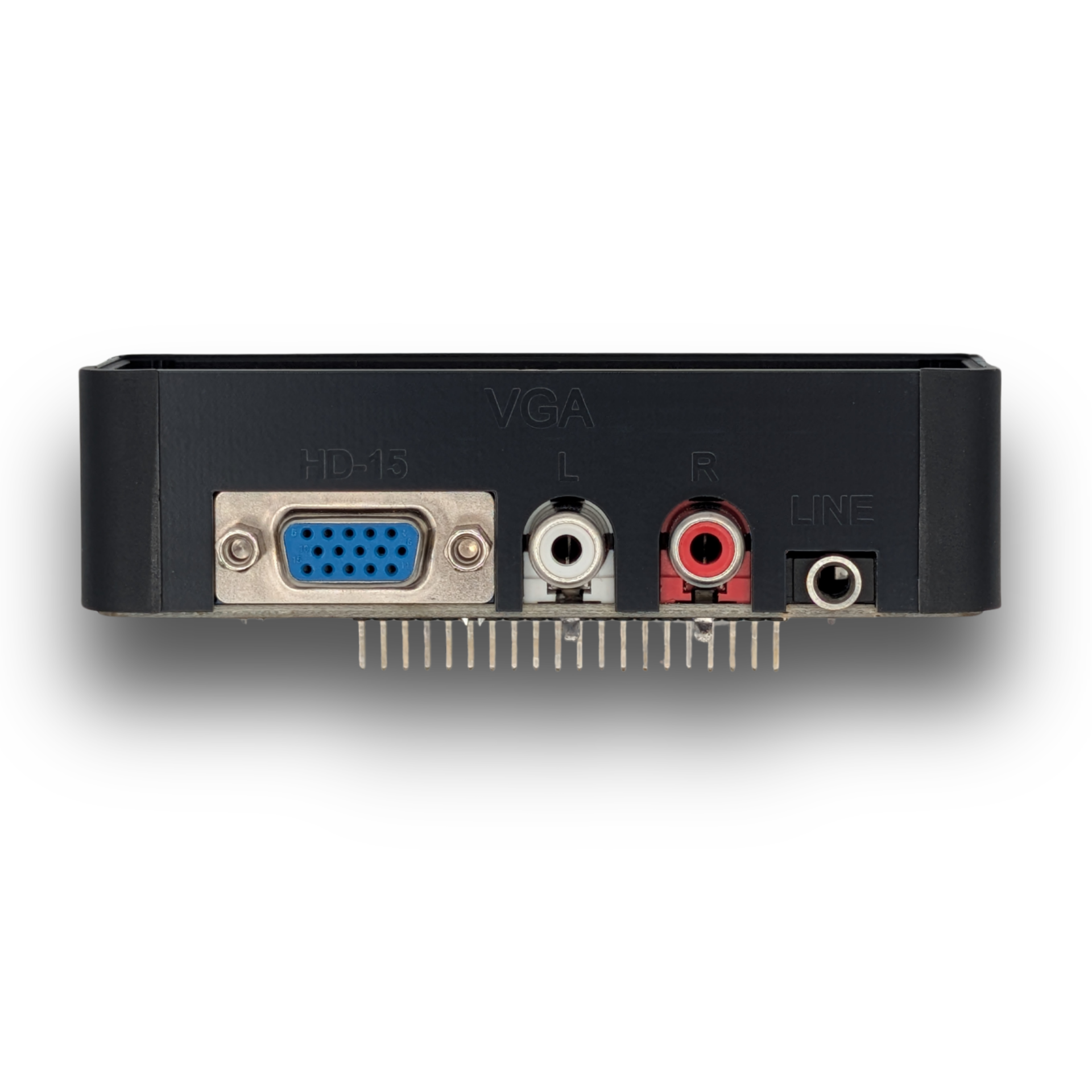

Scalable Video Switch VGA Input Module

This is the VGA input module for the SVS. This module can accept a variety of signal formats through it's HD-15 port.

Features:

• Can accept DC Coupled RGBHV typically known as VGA. May accept RGBS depending on cable design but not explicitly supported. Sync levels must be 5v TTL.

• Integrated Sync Combiner to convert RGBHV to RGBS
• Integrated Sync On Green conversion for RGBHV signals
• Can accept resolutions up to 1080p60
• Can accept Toslink digital audio with the optional Toslink Input Module.

Included Parts:

• 1x SVS VGA Input Module PCB
• 1x SVS VGA Input Module shell

• 4x M3 25mm hexagonal standoffs
