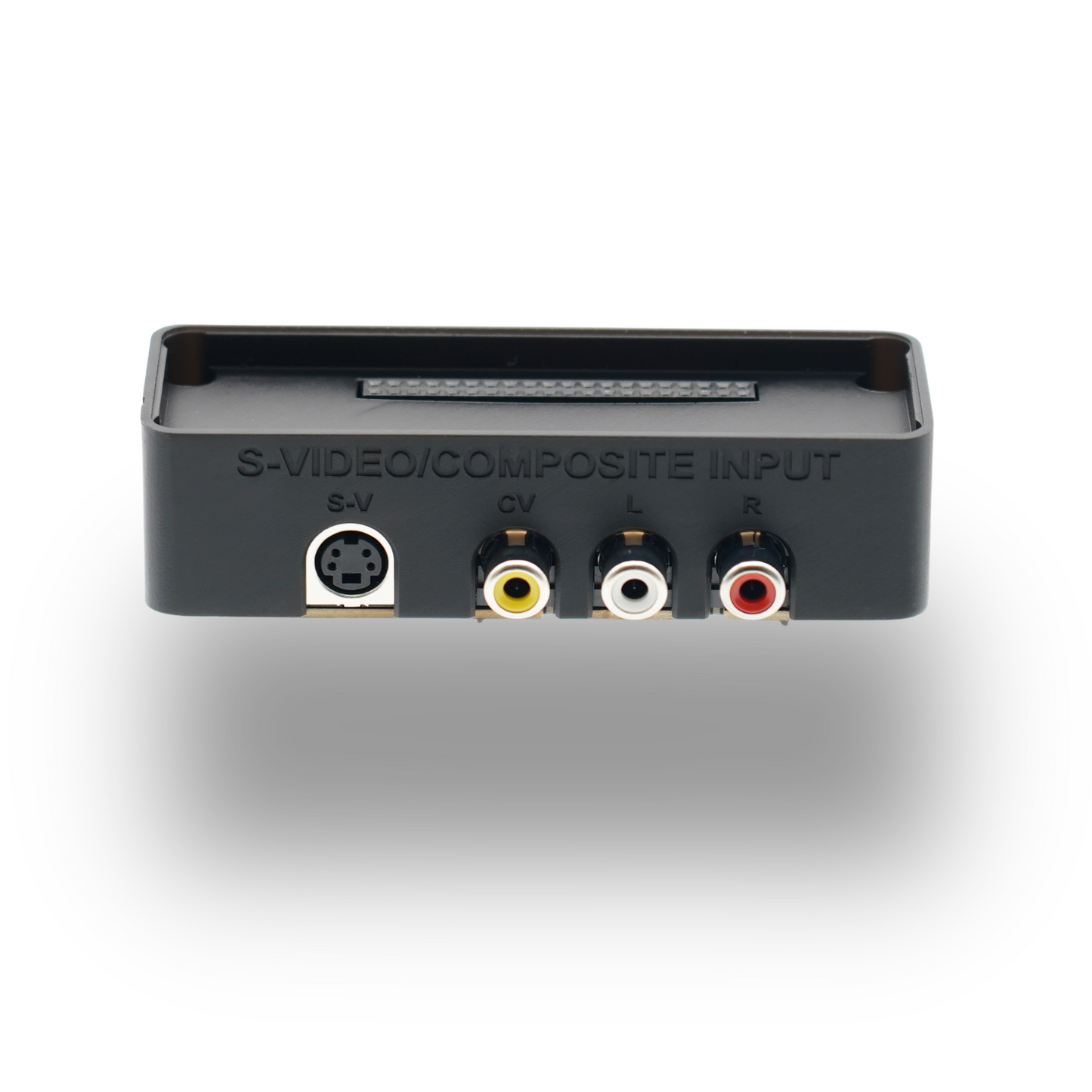

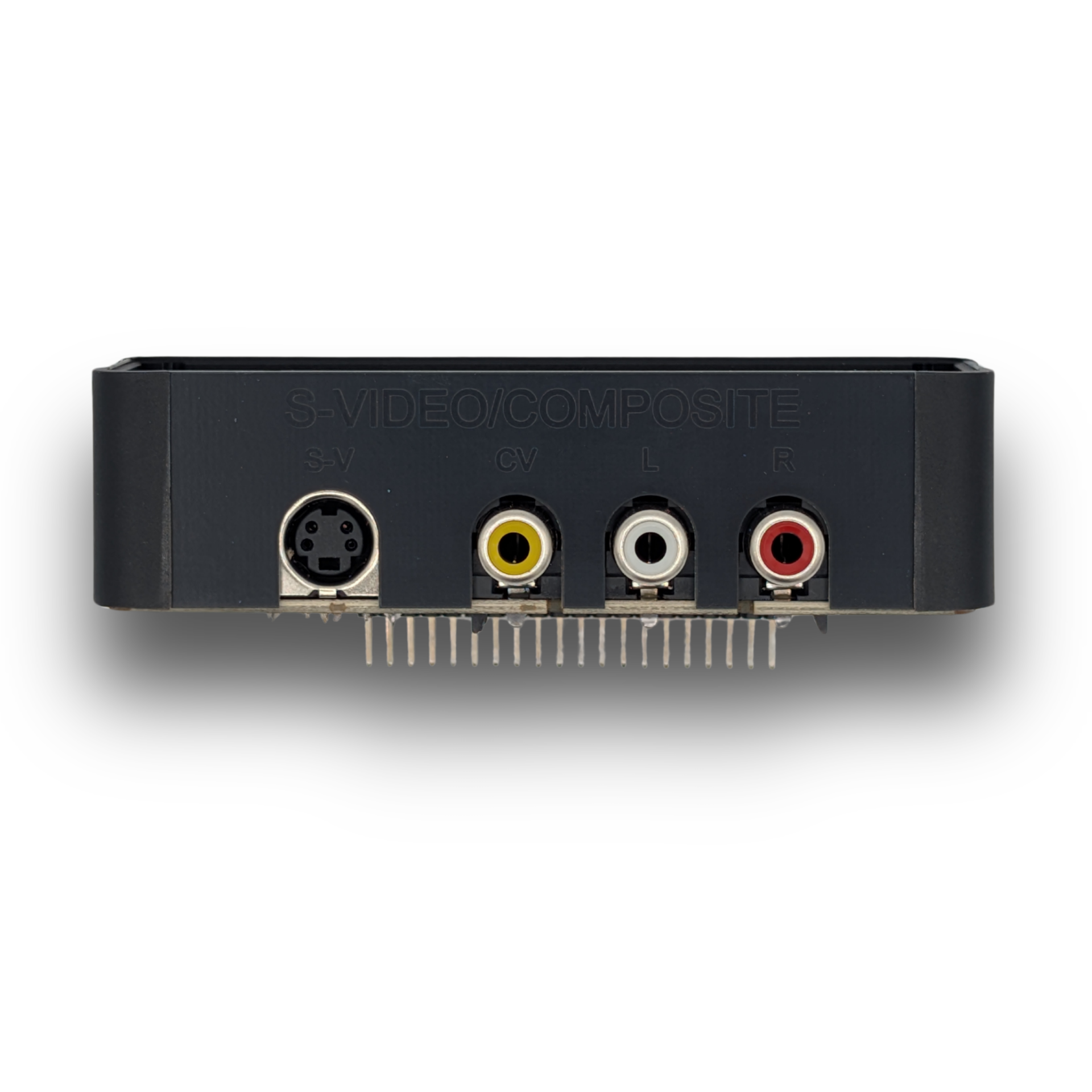

Scalable Video Switch Composite/S-Video Input Module

This is the Composite/S-Video input module for the SVS. This module can accept NTSC and PAL composite video and S-Video signals.

Features:

• Can accept Composite Video through an RCA jack or S-Video through a MiniDIN 4 connector.
• Can accept resolutions up to 480i
• Can accept Toslink digital audio with the optional Toslink Input Module.

Included Parts:

• 1x SVS Composite/S-Video Input Module PCB
• 1x SVS Composite/S-Video Input Module shell

• 4x M3 25mm hexagonal standoffs
