Scalable Video Switch BNC Output Module

BNC Output Module

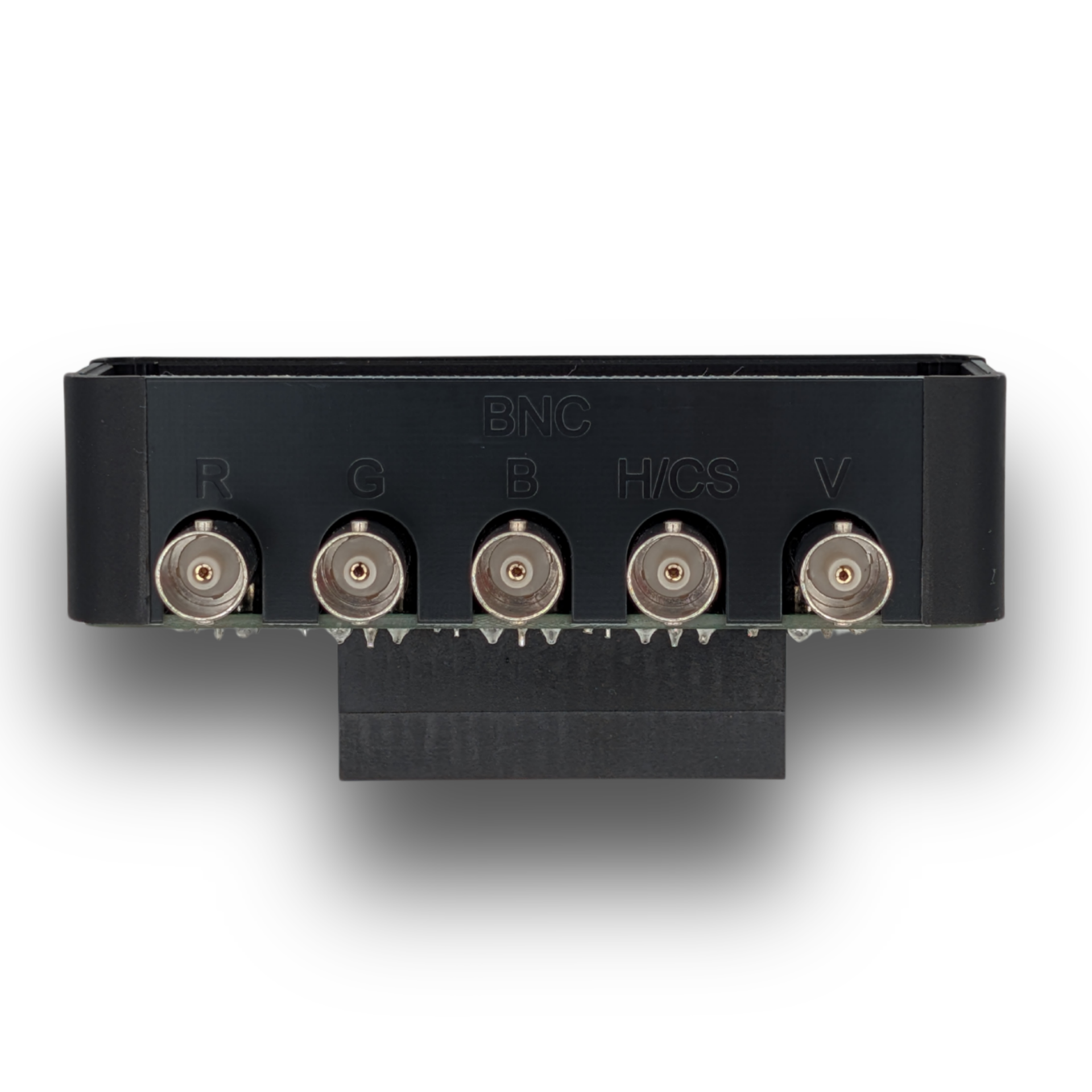

This is the BNC Output module for the SVS. This module can output a variety of signal formats through it's BNC ports.

Features:

• Can output RGBHV, RGBS, RGsB (otherwise known as Sync On Green), YPbPr (otherwise known as Component Video), S-Video (on Green and Red) and Composite Video (on Green) through the R, G, B, H/C, and V BNC Ports.
• Can convert RGBS and RGsB to RGBHV
• Outputs in either AC coupled or DC coupled video signals (user selectable).

• Can output resolutions up to 1080p60
• Outputs analog stereo audio through the 3.5mm stereo Line Output port.
• Can output Toslink digital audio using the built in Toslink Output port.


Included Parts:

• 1x BNC Output Module PCB
• 1x BNC Output Module shell

• 4x M3 25mm hexagonal standoffs
