YPbPr to RGB Transcoder Module

Only one YPbPr to RGB Transcoder Module is needed per Scalable Video Switch regardless of how many inputs you need to transcode.

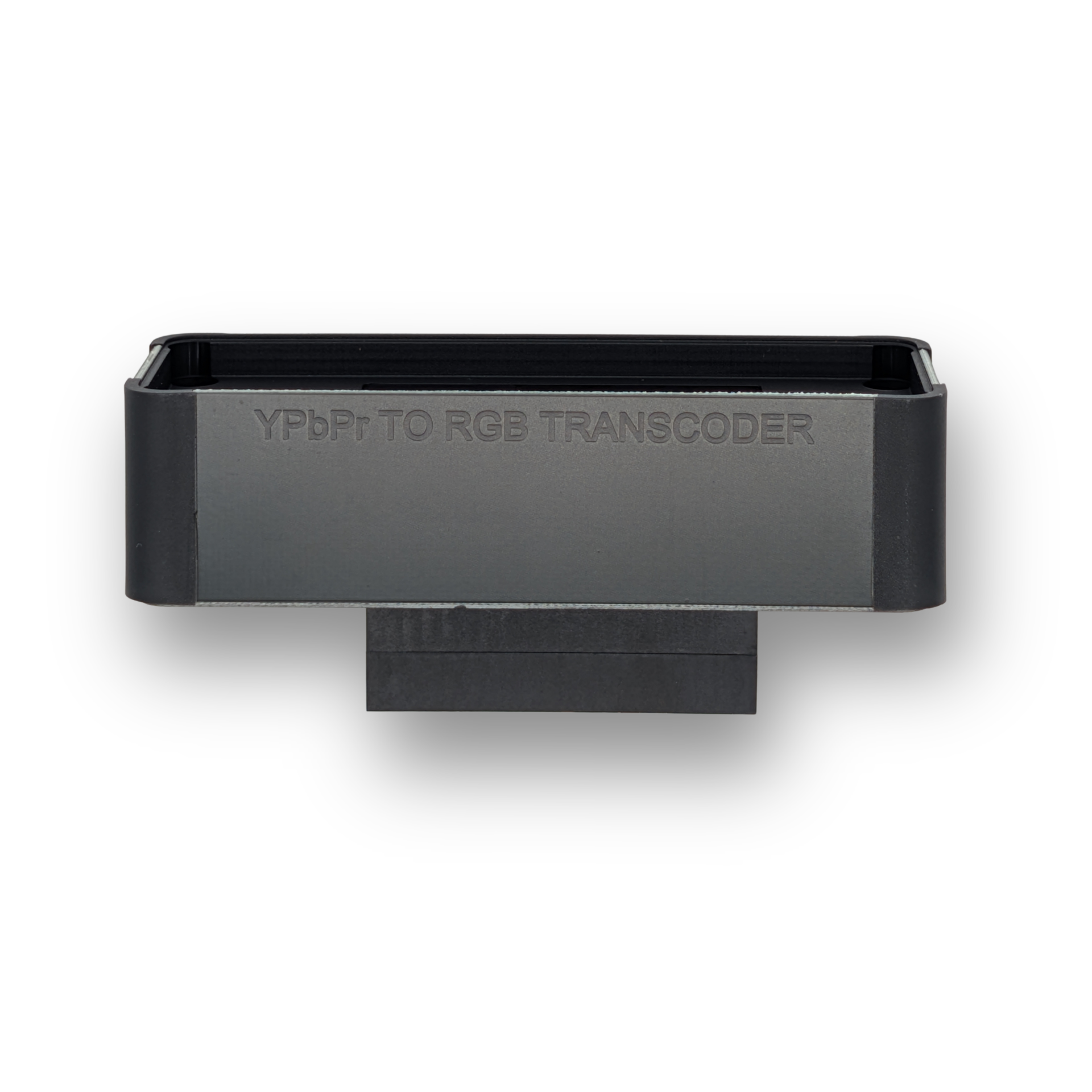

This is the YPbPr to RGB Transcoder Module. This module can transcode YPbPr (Component) signals into RGBS or RGBHV signals. The module is placed on the output side of the SVS stack. Any output modules placed after this transcoder will be able to be transcoded, any output modules placed before this transcoder will not be transcoded and will output in the native color format of the input signal.

Features:

• Can convert YPbPr (Component Video) to RGBS and RGBHV.
• Per input conversion settings. Remembers if an input needs to be converted or should be passed through each time that input is selected.
• Automatic Rec 601/709 color matrix conversion depending on input resolution.
• Supports input resolutions from 240p all the way up to 1080p.

Included Parts:

• 1x YPbPr to RGB Transcoder Module PCB
• 1x YPbPr to RGB Transcoder Module shell

• 4x M3 25mm hexagonal standoffs
